Class for diagonal matrices. More...

#include <dia_matrix.hpp>

Inheritance diagram for cuv::dia_matrix< __value_type, __memory_space_type, __index_type >:

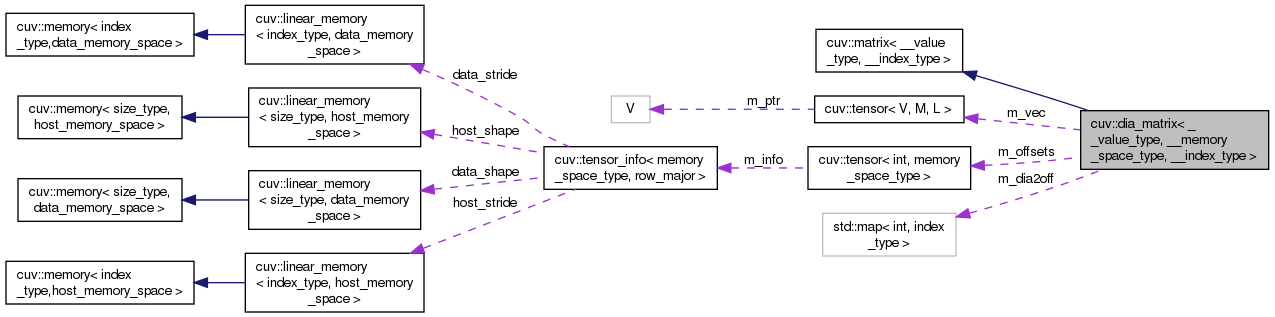

Collaboration diagram for cuv::dia_matrix< __value_type, __memory_space_type, __index_type >:

Public Types
typedef __value_type	value_type
	Type of the entries of matrix.
typedef const value_type	const_value_type
	Type of the entries of matrix.
typedef matrix< __value_type, __index_type >	base_type
	Basic matrix type.
typedef __memory_space_type	memory_space_type
	Whether this is a host or device matrix.
typedef base_type::index_type	index_type
	Type of indices.
typedef const tensor < value_type, memory_space_type >	const_vec_type
	Basic vector type used.
typedef tensor< value_type, memory_space_type >	vec_type
	Basic vector type used.
typedef tensor< int, memory_space_type >	intvec_type
	Type of offsets for diagonals.
typedef dia_matrix< value_type, memory_space_type, index_type >	my_type
	Type of this matix.
typedef vec_type::pointer_type	ptr_type
Public Types inherited from cuv::matrix< __value_type, __index_type >
typedef __value_type	value_type
	Type of the entries of matrix.
typedef __index_type	index_type
	Type of indices.

Public Member Functions
	~dia_matrix ()
	dia_matrix (const index_type &h, const index_type &w, const int &num_dia, const int &stride, int row_fact=1)
	Creates diagonal matrix of given size, with given number of diagonals and stride.
void	dealloc ()
std::vector< index_type >	shape () const
	shape of a dia-matrix.
void	alloc ()
const vec_type &	vec () const
	Return pointer to vector storing entries.
vec_type &	vec ()
	Return pointer to vector storing entries.
const vec_type *	vec_ptr () const
	Return reference to vector storing entries.
vec_type *	vec_ptr ()
	Return reference to vector storing entries.
ptr_type	ptr ()
	Return reference to vector storing entries.
const ptr_type	ptr () const
	Return reference to vector storing entries.
int	num_dia () const
	Return number of diagonals.
unsigned int	stride () const
	Return stride of matrix.
int	row_fact () const
	Return steepness of diagonals.
template<class T >
void	set_offsets (T begin, const T &end)
	Set the offsets of the diagonals in the DIA matrix This overload works with any iterator.
template<class T >
void	set_offsets (const std::vector< T > &v)
	Set the offsets of the diagonals in the DIA matrix.
void	post_update_offsets ()
	Update the internal reverse-mapping of diagonals to positions in the offset-array.
void	set_offset (const index_type &idx, const index_type &val)
	Set a single diagonal offset in the matrix.
const_vec_type *	get_dia (const int &k) const
	Return vector (view) containing specified diagonal.
vec_type *	get_dia (const int &k)
	Return a vector (view) on the specified diagonal.
const intvec_type &	get_offsets () const
	Return the vector of offsets.
intvec_type &	get_offsets ()
	return the vector of offsets
int	get_offset (const index_type &idx) const
	< Return offset of specified diagonal
void	set (const index_type &i, const index_type &j, const value_type &val)
value_type	operator() (const index_type &i, const index_type &j) const
	< Return matrix entry (i,j)
bool	has (const index_type &i, const index_type &j) const
	< Return whether matrix entry is managed by sparse matrix
my_type &	operator= (const my_type &o)
	Assignment operator.
Public Member Functions inherited from cuv::matrix< __value_type, __index_type >
	matrix (const index_type &h, const index_type &w)
	Basic constructor: set width and height of matrix but do not allocate any memory.
	matrix (const matrix< value_type, index_type > &m)
	Copy Constructor.
matrix< value_type, index_type > &	operator= (const matrix< value_type, index_type > &m)
	assignment operator
virtual	~matrix ()
void	resize (const index_type &h, const index_type &w)
	Resizing matrix: changing width and height without changing memory layout.
index_type	w () const
	Return matrix width.
index_type	h () const
	Return matrix height.
index_type	n () const
	Return number of entries in matrix.

Public Attributes
int	m_num_dia
	number of diagonals stored
unsigned int	m_stride
	how long the stored diagonals are
vec_type *	m_vec
	stores the actual data
intvec_type	m_offsets
	stores the offsets of the diagonals
std::map< int, index_type >	m_dia2off
	maps a diagonal to an offset
int	m_row_fact
	factor by which to multiply a row index (allows matrices with "steep" diagonals)

Additional Inherited Members
Protected Attributes inherited from cuv::matrix< __value_type, __index_type >
index_type	m_width
	Width of matrix.
index_type	m_height
	Heigth of matrix.

Detailed Description

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>
class cuv::dia_matrix< __value_type, __memory_space_type, __index_type >

Class for diagonal matrices.

Definition at line 58 of file dia_matrix.hpp.

Constructor & Destructor Documentation

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::~dia_matrix ( )

inline

< Destructor. Deallocates Matrix.

Definition at line 79 of file dia_matrix.hpp.

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::dia_matrix	(	const index_type &	h,
		const index_type &	w,
		const int &	num_dia,
		const int &	stride,
		int	row_fact = `1`
	)

inline

Creates diagonal matrix of given size, with given number of diagonals and stride.

Parameters

h	Height of matrix
w	Width of matrix
num_dia	Number of diagonals in matrix
stride	Stride of matrix
row_fact	Steepness of diagonals. Only 1 is supported at the moment.

Definition at line 98 of file dia_matrix.hpp.

Member Function Documentation

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

my_type& cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::operator= ( const my_type & o )

inline

Assignment operator.

Assigns vector belonging to source to destination and sets source vector to NULL

Parameters

o	Source matrix

Returns: Matrix of same size and type of o that now owns vector of entries of o.

Definition at line 260 of file dia_matrix.hpp.

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

void cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::post_update_offsets ( )

inline

Update the internal reverse-mapping of diagonals to positions in the offset-array.

Normally, you do not need to call this function, except when changing the diagonal offsets manually.

Definition at line 181 of file dia_matrix.hpp.

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

void cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::set_offset	(	const index_type &	idx,
		const index_type &	val
	)

inline

Set a single diagonal offset in the matrix.

The main diagonal has offset zero, lower diagonals are negative, higher diagonals are positive.

Parameters

idx	the (internal) index of the offset
val	the offset number

Definition at line 193 of file dia_matrix.hpp.

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

template<class T >

void cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::set_offsets	(	T	begin,
		const T &	end
	)

inline

Set the offsets of the diagonals in the DIA matrix This overload works with any iterator.

The main diagonal has offset zero, lower diagonals are negative, higher diagonals are positive.

Parameters

begin	start of sequence
end	one behind end of sequence

Definition at line 157 of file dia_matrix.hpp.

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

template<class T >

void cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::set_offsets ( const std::vector< T > & v )

inline

Set the offsets of the diagonals in the DIA matrix.

This overload works with a vector. The main diagonal has offset zero, lower diagonals are negative, higher diagonals are positive.

Parameters

v	a vector containing all offsets

Definition at line 171 of file dia_matrix.hpp.

template<class __value_type, class __memory_space_type, class __index_type = unsigned int>

std::vector<index_type> cuv::dia_matrix< __value_type, __memory_space_type, __index_type >::shape ( ) const

inline

shape of a dia-matrix.

This is quite inefficient ATM, mainly for compatibility with tensor.

Returns: a vector of height and width

Definition at line 123 of file dia_matrix.hpp.

The documentation for this class was generated from the following file:

src/cuv/basics/dia_matrix.hpp
